Skid‑steer Loader
Sibom Skid Steer Loader

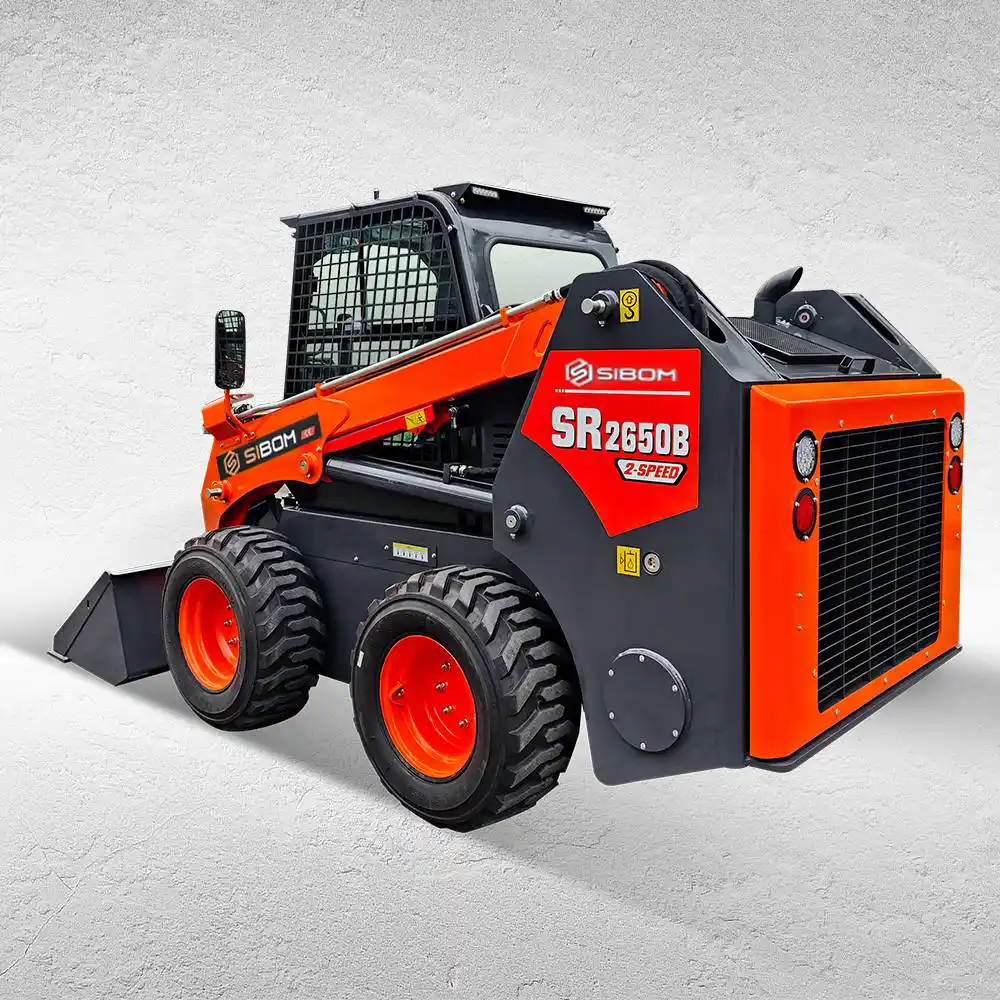

SR2650B Skid Steer Loader
- Factory-direct manufacturer
- 2-year warranty
- Global export support
- Fitment check before dispatch
Key Information
- Product Category
- Skid‑steer Loader
Full specifications are listed below. Send your machine details for a compatibility confirmation.
- Compatible with major wheel loader, skid steer & excavator brands
- Heavy-duty construction for demandingn job sites
- OEM customization available on request
- Factory-direct pricing & worldwide support
Product Overview
Sibom skid steer loader for Australian construction and landscaping. wheeled loader for Australian job sites. View specs and request a quote.
Features & Gallery
Bomrobot B-Series · radial-lift compact loader
SR1550B — compact wheeled skid steer
Built for tightn access — suburban renovations, landscaping and municipal verges — with radial lift geometry, 800 kg rated operating load and attachment-ready hydraulics.
SR2200B — mid-duty wheeled skid steer
King-Kong series radial lift on an extended wheelbase for stable loading, optional two-speed travel and high-flow hydraulics for demanding attachments on firm ground.
SR2650B — heavy wheeled skid steer
Top of the B-Series wheeled line with 1,200 kg rated load, standard two-speed travel and up to 135 L/min auxiliary flow for high-flow tools.
TR2200B — rubber-track compact loader
Same radial lift philosophy on durable rubber tracks — lower ground pressure for paddocks, mud and soft verges without sacrificing lift capacity.
TR2850B — heavy rubber-track loader
Maximum B-Series track capacity (1,300 kg rated load) with high-flow auxiliary options for stockpiles, farm yards and civil maintenance.
SR770T — mini rubber-track loader
Ultra-compact track platform for gates, barns and landscape crews — Bomrobot factory engineering with the same focus on visibility, service access and quick attachment changes.
Factory-direct · 2-year warranty · +86 18805210097
Click to enlarge
At a glance — SR1550B
- Rated operating load
- 800 kg (catalogue)
- Auxiliary hydraulics
- 80 L/min
- Hinge pin height (full lift)
- 3,021 mm / 118.9 in
- Engine (catalogue)
- 34.6 kW Stage III / 35.5 kW Stage IV · Yanmar
At a glance — SR2200B
- Rated operating load
- 1,100 kg (catalogue)
- Auxiliary hydraulics
- 85 L/min
- Hinge pin height (full lift)
- 3,100 mm / 122 in
- Engine (catalogue)
- 61.3 kW Stage III / 53.7 kW Stage IV · Yanmar
At a glance — SR2650B
- Rated operating load
- 1,200 kg (catalogue)
- Auxiliary hydraulics
- 85 / 135 L/min (standard / high-flow)
- Hinge pin height (full lift)
- 3,406 mm / 134 in
- Engine (catalogue)
- 74 kW Stage III / IV · Weichai
At a glance — TR2200B
- Rated operating load
- 1,100 kg (catalogue)
- Auxiliary hydraulics
- 85 L/min
- Hinge pin height (full lift)
- 3,135 mm / 123.4 in
- Engine (catalogue)
- 61.3 kW Stage III / 53.7 kW Stage IV · Yanmar
At a glance — TR2850B
- Rated operating load
- 1,300 kg (catalogue)
- Auxiliary hydraulics
- 85 / 135 L/min (standard / high-flow)
- Hinge pin height (full lift)
- 3,440 mm / 135.4 in
- Engine (catalogue)
- 74 kW Stage III / IV · Weichai
Click to enlarge
Clean power & efficient operation
- Yanmar and Weichai engines with Stage III / IV options tuned for loader duty cycles.
- Electronic engine management and dual throttle (hand + foot) to match load and cut fuel use.
- Extended wheelbase improves weight distribution, ride quality and lift stability.
- Loading-arm support geometry and bucket cylinder layout for strong dig and push forces.
Full engine and dimension data for this model are in the Technical Specifications section below.
Comfortable to drive · efficient operation
- Hydraulic pilot joysticks — light effort, smooth proportional control for fine grading.
- Pressurised cab, HVAC and wide glass — see bucket edges, tyres and surroundings clearly.
- 5-inch colour display, LED work lights and ergonomically laid-out switches.
- Suspended seat, safety interlocks and low sills for safe entry on long shifts.
Click to enlarge
Maintenance made practical
- Grouped daily checkpoints and remote-mounted filters for faster service stops.
- Tilt cab on two bolts with safety lock — wide access to pumps, valves and harnesses.
- Rear door opens for radiator, oil and coolant checks without dismantling guards.
- Twin axial-piston pump driven from engine PTO — efficient power path, fewer belt issues.
Click to enlarge
Click to enlarge
Request a quote or specification pack · View all compact loaders
Attachments & Hydraulics
Every B-Series loader is built for quick attachment changes and auxiliary hydraulics to run buckets, forks, brooms, augers, mulchers and other tools in the Bomrobot attachment range. Tell us your flow, pressure and coupler type — we match tools to this machine before dispatch.
Technical Specifications
| Fundamental Dimension | |
|---|---|
| Working height - Full lift A (in) | 171.65 |
| Hinged height - full lift B (in) | 132.36 |
| Top guard height C (in) | 83.07 |
| Total length - with bucket D (in) | 150.78 |
| Down Angle - Full lift E (°) | 40 |
| Discharge height F (in) | 102.36 |
| Discharge distance G (in) | 21.65 |
| Up dip Angle J(°） | 30 |
| Highest up dip Angle M(°） | 100 |
| Total width - No bucket Q (in) | 72.04 |
| ground clearance S (in) | 7.87 |
| Bucket width R (in) | 74.01 |
| departure angle W（°） | 20 |
| wheel base V (in) | 50.39 |
| Turning radius. - No bucket Y (in) | 56.88 |
| Turning radius - with bucket X (in) | 89.17 |
| Turning radius - Tail Z (in) | 69.37 |
| Weichai Engine parameters (Country III) | |
|---|---|
| Power (kW) | 74 |
| displacement (L) | 4.1 |
| Maximum Torque / Speed (Nm/rpm) | 380/(1400~1800) |
| fuel system | Electric |
| Hydraulic Electrical System | |
|---|---|
| Fittings hydraulic flow（L/min） | 85 |
| Oil supply pressure（Mpa） | 21 |
| High hydraulic flow Optional (optional)（L/min） | 135 |
| It has the maximum oil supply pressure（Mpa） | 20 |
| Fuel tank capacity（L） | 90 |
| Work walk control mode | Hydraulic pilot type |
| Basic spicifaction | |
|---|---|
| Rated Load (lbs) | 2645 |
| Operating Weight (lbs) | 8223 |
| Tipping Load (lbs) | 5291 |
| Two-speed travel speed (mph) | 6.2/11.2 |
| Main product configuration | ||
|---|---|---|
| Operation mode | Pilot hydraulic control | |
| Engine | Weichai Guo3, power 74Kw | |
| Travelling pump | REXROTH walking plunger pump | |
| Travelling motor | REXROTH walking plunger motor | |
| Control handle | EBI Pilot control handle | Optional multi-function handle |
| Working pump | Casappa Working gear oil pump | Large flow pump is available |
| Hydraulic quick coupler | FASTER Combined quick connector | |
| Leveling valve | NEM leveling valve | |
| Leveling valve | Jiangsu Baomei | |
Why Choose Bomrobot
Factory-direct manufacturer — no middleman markups
OEM & custom specifications available
Proven export experience to & New Zealand
International quoting & after-sales support
Frequently Asked Questions
What applications is this loader suited for in Australia?
The Sibom Skid Steer Loader is built for construction, landscaping, material handling and municipal work where tight access and attachment versatility matter. Australian contractors use these loaders on building sites, farms, council yards and remote projects.
Skid steer loader vs compact track loader — which should I choose?
Wheeled skid steer loaders offer faster travel speed and lower maintenance on hard surfaces and urban job sites. If you work on soft ground, farms or uneven tracks, a compact track loader may be a better fit. Tell us your typical terrain and we will help you choose the right Sibom loader series.
Can I use standard quick-attach attachments on this loader?
Yes. Sibom loaders are designed for common quick-attach mounting so you can pair buckets, grapples, augers, brooms and other attachments from the Sibom range or compatible third-party tools. Send your attachment list and we will confirm coupler and hydraulic flow compatibility.
Can Sibom deliver this loader to Australia?
Yes. Sibom regularly exports loaders and attachments to Australia. We arrange sea freight to your nearest port, provide export documentation and support customs clearance. Contact us for lead time and shipping options to your state.
What warranty and support does Sibom provide?
Sibom loaders are backed by a factory warranty and ongoing technical support. Our team assists with setup, hydraulic configuration and spare parts supply after delivery to Australia.
